고급 건축은 더 이상 값비싼 자재, 인상적인 외관, 커다란 창문, 고급 가구 또는 정교한 조명만으로 정의되지 않습니다. 현대의 고급 공간은 제공하는 경험의 질로 평가받는 경우가 점점 더 많아지고 있습니다. 온도, 습도, 실내 공기 질, 음향 쾌적성, 시각적 청결도, 그리고 건축 시스템의 신뢰성 모두 거주자가 고급 환경을 어떻게 인식하는지에 영향을 미칩니다.

이러한 요소들 중 환기는 가장 중요하면서도 가장 간과하기 쉬운 요소 중 하나입니다. 사람들은 신선한 공기, 적절한 습도, 효과적인 열 제거를 기대하지만, 이러한 이점을 제공하는 기계 장치의 소음이 끊임없이 들리는 것을 원하지는 않습니다. 성능은 우수하지만 상당한 소음을 발생시키는 환기 시스템은 고급 건물이 추구하는 편안함과 세련됨을 저해할 수 있습니다.

이러한 이유로 저소음 배기 팬 통합은 현대 건축물의 HVAC 설계에서 중요한 고려 사항이 되었습니다. 목표는 단순히 소음 등급이 낮은 팬을 구입하는 것이 아닙니다. 진정으로 조용한 환기 솔루션을 위해서는 팬, 모터, 공기 흐름 경로, 덕트, 설치 구조, 제어 시스템, 건축 자재 및 건축 설계 간의 조화가 필요합니다.

고급 주거 건물, 부티크 호텔, 프라이빗 클럽, 프리미엄 레스토랑, 고급 소매점, 임원 사무실, 웰니스 시설 및 고급 의료 환경에서는 배기 시스템이 눈에 띄지 않게 작동해야 하는 경우가 많습니다. 거주자들이 장비 작동을 의식하지 않고 환기의 이점을 누릴 때 최상의 결과를 얻을 수 있습니다.

중국 충포 팬(China Chungfo Fan)과 같은 제조업체에게 이는 엔지니어링 및 건축적 관점 모두에서 팬 설계를 접근할 수 있는 기회를 제공합니다. 소음 특성, 공기 흐름 성능, 물리적 크기, 제어 옵션 및 신뢰성을 건물 설계 과정 초기부터 고려할 경우, 소형 환기 부품도 더 큰 HVAC 솔루션의 일부가 될 수 있습니다.

고급 건축 공간에서 소음이 중요한 이유

고급 환경에서 소음이 미치는 심리적 영향은 일반적인 산업 또는 공공 시설 공간과는 다릅니다. 공장, 창고, 작업장 또는 기계실에서는 장비 소음이 환경의 일부로 받아들여질 수 있습니다. 그러나 고급 호텔 객실이나 개인 주택에서는 비교적 작은 지속적인 소음조차도 거슬리게 느껴질 수 있습니다.

고급 건축은 종종 평온함을 조성하는 것을 목표로 합니다. 천연 소재, 은은한 조명, 세심하게 선택된 질감, 숨겨진 설비, 그리고 절제된 공간 비율은 거주자가 편안하게 쉴 수 있는 분위기를 만들어내는 데 사용됩니다. 지속적인 소음을 발생시키는 선풍기는 이러한 분위기를 방해할 수 있습니다.

환풍기가 장시간 작동할 수 있다는 점을 고려하면 문제는 더욱 심각해집니다. 짧은 시간 동안의 소음은 용인될 수 있지만, 지속적인 작동은 전혀 다른 인식을 불러일으킵니다. 인간의 청각은 반복적인 음색에 매우 민감하며, 특히 주변 환경이 조용할 때 더욱 그렇습니다.

이러한 이유로 팬 소음은 독립적인 사양으로 간주해서는 안 됩니다. 팬에서 발생하는 소음 수준은 음향적 결과의 일부일 뿐입니다. 공기 흐름의 난류, 모터 진동, 베어링 작동, 장착면, 덕트 공명, 그릴 설계 및 압력 손실 등 모든 요소가 최종적으로 거주자가 듣는 소음에 영향을 미칠 수 있습니다.

실험실 소음 등급이 양호한 팬이라도 덕트 시스템 설계가 부실하면 설치 후 소음이 발생할 수 있습니다. 반대로, 적절한 덕트 시스템과 진동 차단 장치를 갖춘 잘 선택된 팬은 실제 사용 환경에서 훨씬 조용한 결과를 제공할 수 있습니다.

이러한 구분은 특히 건축물 냉난방 시스템(HVAC)에서 중요한데, 팬이 더 큰 네트워크에 연결되는 경우가 많기 때문입니다. 전체 공기 흐름 시스템은 팬이 작동해야 하는 최대 부하를 결정합니다. 시스템에서 과도한 저항이 발생하면 팬은 더 높은 속도로 작동해야 할 수 있습니다. 속도가 높아지면 난류, 진동, 모터 소음 및 공기역학적 소음이 증가할 수 있습니다.

따라서 저소음 환기의 첫 번째 원칙은 간단합니다. 팬을 공기 흐름 시스템과 분리해서 설계하지 마십시오.

조용한 성능은 올바른 팬 선택에서 시작됩니다.

조용한 배기 시스템을 구축하는 데 있어 가장 중요한 단계는 실제 작동 조건에 맞는 팬을 선택하는 것입니다. 흔히 저지르는 실수는 최대 풍량만을 기준으로 팬을 선택하는 것입니다.

최대 풍량은 제품 비교에 유용하지만, 설치 후 팬의 성능을 보장하지는 않습니다. 덕트 시스템이 제한적일 경우, 팬은 정격 풍량보다 훨씬 적은 풍량을 제공할 수 있습니다. 필요한 풍량이 확보되지 않으면 시스템은 팬 속도나 작동 시간을 늘려 이를 보완할 수 있습니다.

보다 나은 선정 과정에서는 공기 흐름, 정압, 작동 전압, 속도, 소음 수준, 크기, 베어링 시스템, 모터 설계, 예상 작동 시간, 온도 조건 및 제어 요구 사항을 고려해야 합니다.

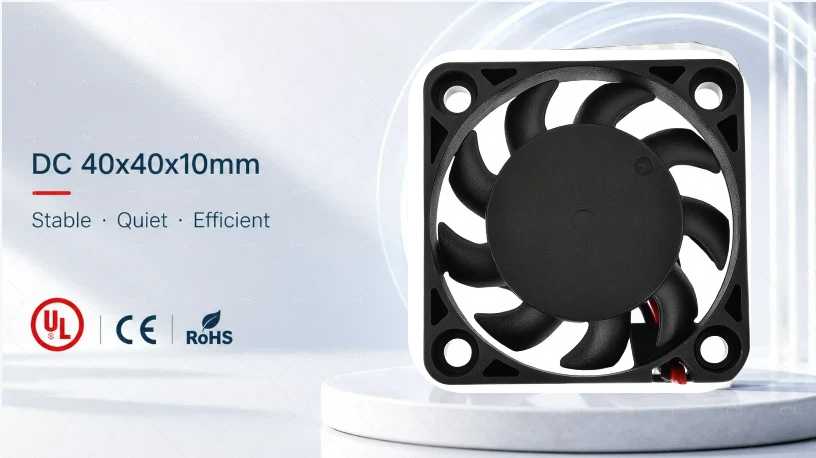

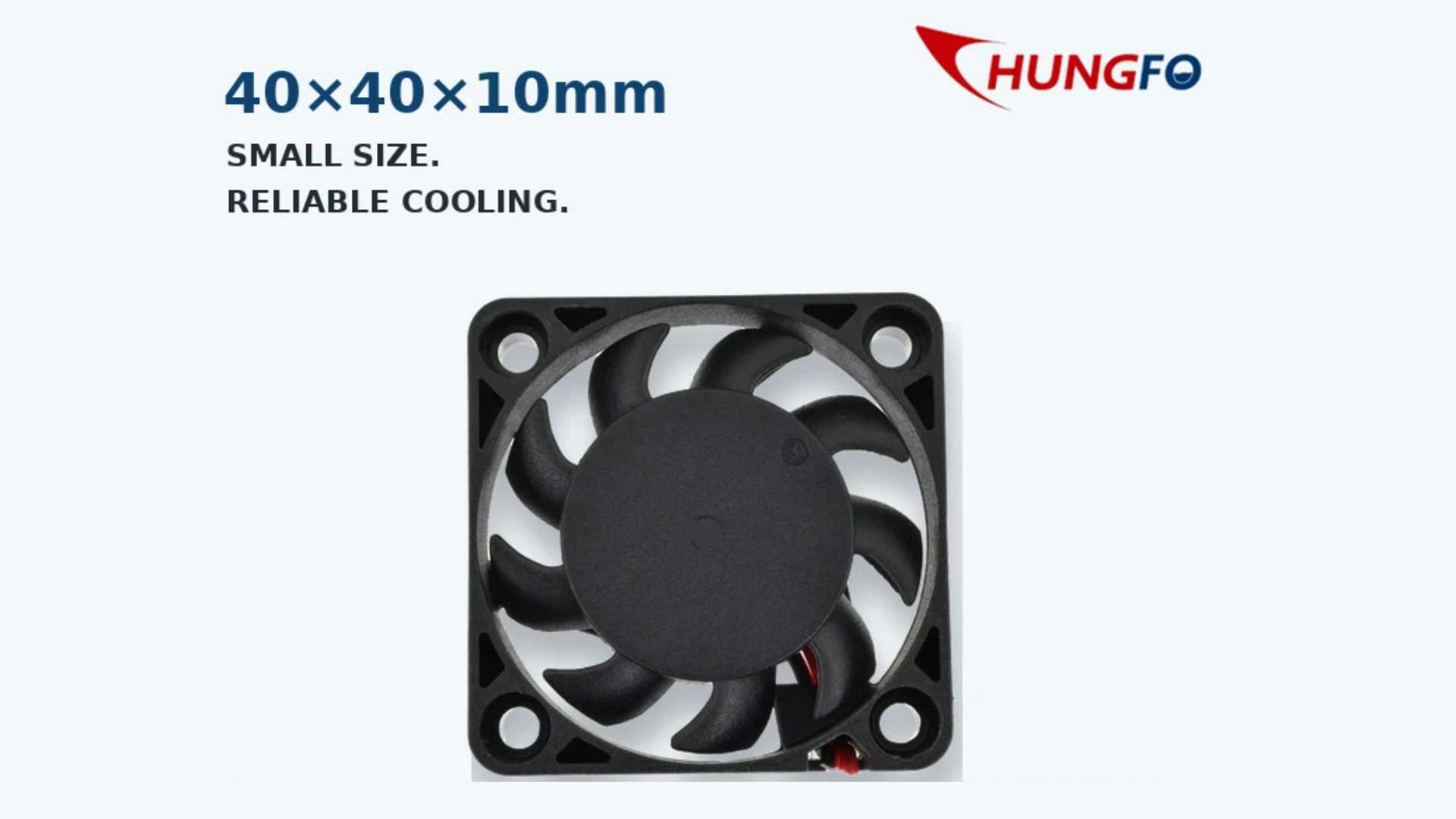

공간이 제한적이고 비교적 개방된 환기 경로를 통해 직접적인 공기 흐름이 필요한 소형 건축 설비의 경우, DC 축류 팬이 유용할 수 있습니다. 축류 팬 구조는 효율적인 공기 흐름 성능을 유지하면서도 소형화된 솔루션을 제공합니다.

하지만 모든 환기 용도에 축류형 팬이 적합한 것은 아닙니다. 시스템에 더 높은 압력이 필요하거나 복잡한 공기 흐름 경로가 요구되는 경우에는 원심형 팬이 더 적합할 수 있습니다. 따라서 팬은 제품 종류만 고려하기보다는 시스템 저항을 고려하여 선택해야 합니다.

공기 흐름과 압력 사이의 관계는 특히 중요합니다. 팬은 덕트에 연결된 후 최대 공기 흐름으로 작동하지 않습니다. 실제 작동 지점은 팬 성능 곡선과 시스템 저항 곡선이 만나는 지점에서 결정됩니다.

고급 건축 프로젝트에서 엔지니어는 팬을 최종 선정하기 전에 예상되는 시스템 저항을 파악해야 합니다. 여기에는 덕트 길이, 엘보, 필터, 그릴, 댐퍼, 소음기, 연결 부품 및 기타 구성 요소가 포함됩니다. 실제 필요한 압력을 파악한 후에는 과도한 속도 없이 필요한 풍량을 제공할 수 있는 팬을 선택할 수 있습니다.

저속 재생이 음향적 쾌적함을 향상시킬 수 있는 이유

팬 속도는 소음에 영향을 미치는 가장 중요한 변수 중 하나입니다. 많은 경우, 속도를 높이면 공기역학적 소음이 크게 증가할 수 있습니다. 따라서 불필요하게 빠른 속도의 팬을 사용하는 시스템은 팬 자체가 기술적으로 조용하게 작동할 수 있더라도 소음 문제를 야기할 수 있습니다.

더 나은 방법은 적절한 팬 크기와 작동 지점을 선택하여 필요한 공기 흐름을 적절한 회전 속도로 전달할 수 있도록 하는 것입니다.

이러한 상황에서 소형 팬과 맞춤형 모터 제어가 유용하게 활용될 수 있습니다. 환기 시스템은 최대 출력으로 지속적으로 작동하는 대신, 가변 속도 제어를 통해 실제 수요에 맞춰 팬 성능을 조절할 수 있습니다.

예를 들어, 고급 주택의 욕실은 샤워 중에는 더 강한 배기가 필요하지만 샤워 후에는 훨씬 적은 공기 흐름이 필요할 수 있습니다. 지속적으로 작동하는 팬은 평소에는 낮은 속도로 작동하다가 습도가 높아지면 일시적으로 속도를 높일 수 있습니다.

이러한 접근 방식은 여러 가지 이점을 제공합니다. 불필요한 소음을 줄이고, 에너지 소비를 절감하며, 장비 수명을 연장하고, 실내 환경을 더욱 효과적으로 제어할 수 있습니다.

PWM 제어는 필요한 전기 아키텍처를 지원하는 시스템에서 더욱 정밀한 속도 관리를 제공할 수 있습니다. 실제 환기 수요에 따라 팬 속도를 조절함으로써 HVAC 시스템이 항상 최대 용량으로 작동할 필요가 없습니다.

그 결과, 거주자에게는 거의 눈에 띄지 않으면서도 더욱 지능적인 환기 시스템이 탄생했습니다.

모터 및 베어링 설계의 역할

모터 또한 소음 성능에 중요한 영향을 미치는 요소입니다. 선풍기는 단순히 날개 사이로 공기가 흐르기 때문에 소음을 발생시키는 것이 아닙니다. 전기 및 기계 부품들도 전체적인 소음 수준에 영향을 미칠 수 있습니다.

모터 불균형, 베어링 마찰, 로터 움직임, 구조적 진동 및 제조 공차는 모두 팬 작동에 영향을 미칠 수 있습니다.

잘 설계된 브러시리스 모터는 안정적인 작동과 정밀한 속도 제어를 제공할 수 있습니다. 베어링 선택 또한 장기적인 성능에 영향을 미칩니다. 슬리브 베어링과 볼 베어링은 특성이 다르며, 올바른 선택은 설치 환경, 예상 작동 시간, 온도, 방향 및 필요한 수명에 따라 달라집니다.

공간이 제한적인 소형 장비에서는 소형 송풍기 제품이 유용한 공기 흐름 솔루션을 제공할 수 있습니다. 예를 들어, 송풍기 5015는 공기 흐름 경로가 보다 집중적인 접근을 필요로 하는 용도에 적합한 소형 팬 유형입니다. 이 제품의 적합성은 물리적 크기뿐만 아니라 필요한 공기 흐름량과 압력에 따라 결정됩니다.

3010 송풍기 팬에도 동일한 원리가 적용됩니다. 매우 컴팩트한 송풍기 구조는 환기 장비가 좁은 건축 공간이나 숨겨진 장비실에 설치되어야 할 때 유용할 수 있습니다. 그러나 크기가 작다고 해서 자동으로 조용한 작동이 보장되는 것은 아닙니다. 모터, 임펠러 형상, 압력 요구 사항, 설치 구조 및 작동 속도를 모두 종합적으로 평가해야 합니다.

고급 프로젝트의 경우, 단순히 구매 비용을 최소화하는 것보다는 안정적이고 예측 가능한 운영을 목표로 삼아야 합니다.

소음으로 발전하기 전에 진동을 줄이세요

냉난방 공조(HVAC) 설계 시 진동은 종종 간과됩니다. 엔지니어들은 음압 수준에만 집중하고 기계적 진동이 건물 구조를 통해 어떻게 전달되는지에 대해서는 충분한 주의를 기울이지 않는 경우가 있습니다.

금속 패널에 직접 장착된 팬은 진동을 주변 구조물로 전달할 수 있습니다. 그러면 패널이 소음 방사체 역할을 할 수 있습니다. 조용한 방에서는 팬 자체의 소음 수준이 비교적 낮더라도 이러한 진동이 느껴질 수 있습니다.

따라서 제대로 설치하면 큰 차이를 만들 수 있습니다.

유연한 장착 부품, 진동 차단 재료, 균형 잡힌 회전 부품, 정확한 조립 및 적절한 구조적 지지대는 진동 전달을 줄일 수 있습니다.

설치 표면 또한 고려해야 할 사항입니다. 얇은 금속 패널은 두꺼운 구조 패널과 진동을 다르게 증폭시킬 수 있습니다. 주변 환경으로 인해 공진 주파수가 발생하여 특정 팬 작동 속도가 더 두드러지게 나타날 수 있습니다.

이것이 바로 음향 엔지니어링이 프로젝트 후반에 추가되는 것이 아니라 기계적 접합부에서 시작되어야 하는 이유입니다.

건축적 통합 및 숨겨진 환기 시스템

고급 건축의 특징 중 하나는 시각적 깔끔함입니다. 디자이너들은 흔히 숨겨진 설비, 일체형 그릴, 최소한의 개구부, 그리고 끊김 없는 표면을 선호합니다.

따라서 환기 시스템은 눈에 띄는 기계 장치가 되기보다는 건축물에 조화롭게 어우러져야 합니다.

Fans can be positioned inside ceiling voids, service cavities, equipment compartments, bathroom ceiling systems, kitchen ventilation structures, furniture systems, or dedicated mechanical zones.

The challenge is to maintain sufficient airflow while preventing the fan from being obstructed.

A concealed fan still requires sufficient intake and discharge area. If the opening is too small, airflow resistance increases. If the grille is poorly designed, turbulence and noise may increase.

The ideal architectural solution balances three requirements. The fan should remain visually discreet, the airflow path should remain efficient, and maintenance access should remain practical.

This is particularly important in luxury residences where architectural finishes can be expensive and difficult to remove. A ventilation component that requires extensive ceiling demolition for routine maintenance can create a poor long term ownership experience.

Designing Maintenance Into The Architecture

A quiet exhaust fan is only successful if it remains quiet throughout its service life.

Dust accumulation, bearing wear, blade contamination, loose mounting components, and blocked airflow paths can gradually change fan performance. A system that was almost silent during commissioning may become more noticeable after years of operation.

Maintenance access should therefore be considered during the design stage.

Service panels can be hidden within architectural details. Removable grilles can provide access to filters and fan components. Modular fan assemblies can make replacement easier.

For high end buildings, maintenance should not require compromising the appearance of the interior. The service solution should be planned with the same attention given to lighting, plumbing, and electrical equipment.

This is one reason why fan manufacturers should communicate closely with HVAC engineers and architectural teams. Product dimensions, connector positions, mounting holes, airflow direction, replacement procedures, and service clearances can all influence the final building design.

Quiet Exhaust Fans In Luxury Bathrooms

Bathrooms are one of the clearest examples of why quiet exhaust ventilation matters.

A luxury bathroom may include stone surfaces, glass, wood, decorative metal, large mirrors, and other hard surfaces. These materials can reflect sound and create a more acoustically sensitive environment.

At the same time, bathrooms require effective humidity removal. Steam generated by showers and hot water can increase humidity rapidly. Without adequate exhaust, moisture may remain inside the room and contribute to condensation, odors, and long term material problems.

The ventilation system therefore has to remove humid air without becoming the dominant sound source.

A variable speed exhaust fan can provide a practical solution. During normal operation, the fan can run at a lower speed. When humidity increases, the control system can temporarily increase airflow.

This creates a ventilation pattern that follows actual demand instead of operating continuously at maximum capacity.

For luxury hotels and private residences, this type of control can significantly improve the perceived quality of the bathroom environment.

Luxury Kitchens Require Another Approach

Kitchen ventilation is more demanding because cooking generates heat, moisture, grease, odors, and particles.

A quiet fan cannot simply be selected based on sound level. It must also be capable of handling the required airflow and pressure conditions.

Duct length, bends, filters, dampers, and exhaust outlets can create substantial resistance. If the fan is undersized, airflow may be insufficient. If the fan is oversized and operated at unnecessarily high speed, noise may become excessive.

The design should therefore begin with the required airflow and pressure and then optimize the fan operating point.

In premium kitchens, the fan may also be separated physically from the occupied space. Placing the primary fan in a remote service location can reduce the amount of mechanical noise reaching the kitchen while maintaining effective air extraction.

This approach demonstrates an important architectural principle. Sometimes the quietest fan is not simply a quieter fan. It is a fan placed in a better location.

Quiet Ventilation In Luxury Hotels

Hotels present an even more complex challenge because the same HVAC principles must work across hundreds of rooms.

Guests have different expectations and different sensitivity to sound. A ventilation system that is acceptable to one guest may be noticeable to another.

Hotel rooms also have nighttime operating requirements. Guests may sleep while ventilation continues to operate.

Low speed continuous ventilation can therefore be useful when properly designed. Instead of allowing the fan to cycle between noisy high speed operation and complete shutdown, a controlled low speed mode can maintain background ventilation while minimizing acoustic disturbance.

Bathrooms can use humidity based demand control. Service rooms can use scheduled operation. Public areas can respond to occupancy. Conference rooms can respond to carbon dioxide or air quality sensors.

The overall objective is to make ventilation responsive without making the mechanical system noticeable.

Luxury Offices And Executive Spaces

Executive offices, boardrooms, private meeting rooms, and premium commercial interiors also require acoustic control.

A ventilation fan located near a conference room can interfere with speech intelligibility. A repetitive tonal noise can make conversations more difficult and can affect the perceived quality of meetings.

In these environments, fan selection should be coordinated with the acoustic requirements of the room.

The HVAC designer should consider not only the fan sound level but also duct breakout noise, grille noise, vibration transmission, and background sound.

A well designed system can locate fans away from occupied zones and use properly sized ductwork to distribute air quietly.

This is especially important in executive environments where confidentiality and concentration are important.

Wellness Spaces And Luxury Spas

Spas, wellness centers, meditation rooms, and premium fitness spaces place particularly high demands on acoustic comfort.

These environments are intentionally designed to reduce stress. Water features, natural materials, soft music, and controlled lighting are often used to create a peaceful atmosphere.

Ventilation must support humidity control and air quality without disturbing the experience.

In spa environments, humidity may be significantly higher than in ordinary commercial spaces. Fan materials, motor protection, bearing selection, and electrical protection should therefore be evaluated according to the actual environmental conditions.

Quiet operation remains important, but environmental reliability cannot be sacrificed for acoustic performance.

This is another reason why fan customization can be valuable. The ideal solution may require a specific voltage, airflow range, speed profile, material configuration, protection level, or control method.

The Importance Of Ductwork

Even the best quiet fan can become noisy when connected to poorly designed ductwork.

Small ducts increase air velocity. High velocity can generate turbulence and aerodynamic noise. Sharp elbows can create additional pressure loss. Poorly designed transitions can generate flow separation.

The solution is not necessarily to reduce fan speed alone. The entire airflow path should be optimized.

Duct diameter, length, bend radius, grille area, filter selection, and outlet geometry should be evaluated together.

A larger duct can sometimes allow the same airflow to move at a lower velocity, reducing turbulence. Smooth transitions can reduce pressure loss. Properly designed grilles can improve air distribution.

The fan and ductwork should therefore be treated as one system.

Acoustic Treatment And Fan Placement

Physical distance can also be an effective acoustic design tool.

If the fan can be located away from bedrooms, living rooms, meeting rooms, or relaxation areas, the perceived sound can be reduced.

Remote fan placement is particularly practical when the building includes accessible service zones. The fan can be positioned in a ceiling service cavity or mechanical room while the occupied room receives only the airflow through a properly designed duct system.

Acoustic lining and silencers can also be used where appropriate. However, these components create additional pressure resistance, so they must be included in the fan selection process.

Adding acoustic treatment after the fan has already been selected can cause unexpected airflow problems.

The best sequence is to calculate system resistance, select the fan, evaluate noise, and then optimize the complete system.

Smart Controls Make Quiet Ventilation More Effective

Modern luxury buildings increasingly rely on automation.

Ventilation can be connected to humidity sensors, temperature sensors, occupancy sensors, air quality sensors, timers, building management systems, and smart home platforms.

This creates opportunities for more precise fan operation.

Instead of running continuously at full speed, the system can respond to actual conditions.

A bathroom fan can increase speed when humidity rises. A storage room can operate according to a schedule. A private gym can increase ventilation when occupancy increases. A hotel room can maintain low background ventilation when occupied and adjust operation after the guest leaves.

This type of demand based control can improve both comfort and efficiency.

It also supports the architectural objective of invisibility. The ventilation system becomes something that reacts automatically rather than something occupants have to manage manually.

Energy Efficiency And Quiet Operation

Energy efficiency and acoustic comfort can support each other when the system is designed correctly.

Running a fan faster than necessary consumes additional power and may create unnecessary noise. A correctly sized fan operating near an efficient point can provide the required airflow without excessive energy use.

Variable speed operation can further reduce energy consumption during periods of low demand.

In large luxury buildings, even a small reduction in fan operating power can become meaningful over the lifetime of the building.

The energy strategy should therefore not focus only on the motor efficiency rating. It should consider the entire operating profile.

A fan that is efficient at maximum speed but spends most of its life operating at unnecessary capacity may not provide the best real world solution.

Customization For Architectural Projects

Standard fan products are useful for many applications, but luxury architectural projects often have unusual space and integration requirements.

A fan may need to fit into a specific cavity. The connector may need to face a particular direction. The mounting pattern may need to match an existing bracket. The operating voltage may need to match the building control system.

The fan may also require customized speed control, airflow direction, cable length, material, bearing configuration, or protection features.

This is where an experienced fan manufacturer can contribute beyond simply supplying a catalog product.

China Chungfo Fan can approach the application from the perspective of the actual equipment environment. Instead of treating the fan as an isolated component, the manufacturer can work with project requirements to identify the required airflow, pressure, voltage, dimensions, speed, noise target, and control method.

For architectural HVAC projects, this cooperation can shorten the gap between mechanical engineering requirements and the physical realities of the building.

Testing Before Mass Deployment

Luxury projects often involve significant investment in finishes and equipment. It is therefore advisable to validate ventilation performance before large scale installation.

Prototype testing can evaluate airflow, pressure, noise, vibration, temperature, and control behavior.

Acoustic testing can also identify unexpected tonal noise or structural vibration.

If a fan sounds acceptable in open air but becomes noisy after being installed inside an enclosure, the test environment can reveal the problem before the final architectural finishes are completed.

This is particularly valuable for hotel developments, premium residential towers, private clubs, medical facilities, and other projects where repeated modifications are expensive.

The goal is not simply to verify that the fan works. The goal is to verify that the complete ventilation system works as intended within the architectural environment.

Why Fan Manufacturers Should Understand Architecture

Traditional fan engineering often focuses on airflow, pressure, motor performance, temperature, and reliability.

Those specifications remain essential, but architectural applications require a broader perspective.

A fan may be technically excellent but difficult to integrate. It may provide high airflow but require too much space. It may be quiet in laboratory testing but create vibration after installation. It may be reliable but difficult to access for maintenance.

Architectural HVAC therefore requires collaboration between several disciplines.

Mechanical engineers determine airflow and pressure requirements. Electrical engineers determine power and control requirements. Acoustic engineers evaluate noise and vibration. Architects determine visual integration and spatial constraints. Facility managers consider maintenance and long term operation.

The fan manufacturer sits at the center of these requirements because the fan connects the electrical, mechanical, acoustic, and architectural systems.

A manufacturer capable of understanding these interactions can provide greater value than a supplier that only provides a specification sheet.

The Future Of Quiet Architectural Ventilation

The future of luxury HVAC design will likely move toward smaller, smarter, quieter, and more responsive ventilation systems.

Fans will increasingly operate according to actual environmental demand rather than fixed schedules.

Compact motors and improved control electronics will make variable speed operation more practical.

Sensors will provide more information about humidity, occupancy, air quality, and temperature.

Architects will increasingly expect ventilation components to disappear into the building rather than dominate the ceiling or wall.

At the same time, maintenance and reliability will remain critical. A luxury building cannot depend on a system that performs well only during the first few months of operation.

The most successful solutions will combine quiet mechanical design, efficient airflow, intelligent control, robust materials, reliable motors, and service friendly installation.

How To Specify A Quiet Exhaust Fan For A Luxury Project

The specification process should begin by identifying the actual ventilation requirement.

The design team should determine the required airflow, expected static pressure, operating schedule, available installation space, electrical supply, environmental conditions, acoustic target, control strategy, and maintenance requirements.

The next step is to identify the appropriate fan architecture.

An axial fan may be suitable for direct airflow applications with relatively low system resistance. A blower or centrifugal structure may be more suitable when the system requires higher pressure or directional airflow.

The fan should then be evaluated at its real operating point rather than only at free air conditions.

Noise should be evaluated together with vibration and installation conditions.

The mounting method should be designed before construction.

Ductwork should be sized to avoid unnecessary air velocity and pressure loss.

Control systems should be configured so that the fan operates according to actual demand.

Finally, prototype testing should be performed whenever the project has strict acoustic or architectural requirements.

This process creates a more predictable result and reduces the risk of expensive modifications after construction.

Conclusion

A quiet exhaust fan can be much more than a mechanical component inside a luxury building. When correctly integrated, it becomes part of the invisible infrastructure that supports comfort, air quality, humidity control, energy efficiency, and the overall feeling of refinement.

The key is to stop thinking about quietness as a single fan specification.

True acoustic performance depends on the interaction between the fan, motor, bearing, blade design, airflow, pressure, ductwork, mounting structure, architectural materials, controls, and maintenance strategy.

Luxury architecture demands this level of coordination because the mechanical system must deliver strong performance without becoming visually or acoustically dominant.

For bathrooms, kitchens, hotels, executive offices, spas, private residences, and premium commercial spaces, the right ventilation strategy can provide clean air and humidity control while remaining almost unnoticed.

China Chungfo Fan can support this approach by combining fan engineering with application based customization. From compact ventilation components to larger cooling and exhaust solutions, the right fan should be selected according to the complete system rather than one isolated specification.

The future of luxury HVAC is not simply about moving more air. It is about moving the right amount of air, at the right speed, through the right pathway, with the lowest practical acoustic and energy impact.

When ventilation becomes almost invisible, the architecture can speak for itself.

FAQ

What makes an exhaust fan suitable for luxury architectural HVAC?

A suitable exhaust fan should provide the required airflow and pressure while maintaining low acoustic output, low vibration, reliable operation, compact dimensions, and appropriate control capability. The fan must also be easy to integrate into the architectural and mechanical design.

Is a quiet exhaust fan always better than a high airflow fan?

Not necessarily. A fan must provide sufficient airflow for the application. Selecting an extremely quiet fan that cannot overcome system resistance may result in poor ventilation. The correct approach is to balance airflow, pressure, speed, efficiency, and acoustic performance.

Can a DC Axial Fan be used in architectural ventilation?

Yes, depending on the system design. ADC Axial Fancan be suitable for compact ventilation and cooling applications where the airflow path has relatively manageable resistance. The actual suitability should be determined by the required airflow and static pressure.

Why does a fan become louder after installation?

Installation can introduce additional resistance, turbulence, vibration, and resonance. Ductwork, grilles, mounting panels, and enclosures can all change the acoustic behavior of a fan. This is why system level testing is important.

How can fan speed control reduce noise?

Reducing fan speed during periods of low ventilation demand can reduce aerodynamic noise and mechanical activity. Variable speed control allows the fan to increase output only when higher ventilation is required.

Are small blower fans useful for luxury HVAC equipment?

Small blower fans can be useful where space is limited and a more directed airflow path is required. Products such as ablower fan 5015or a3010 blower fanmay be considered for compact equipment, but the correct model must be selected according to airflow, pressure, dimensions, and operating conditions.

How should fan vibration be controlled?

Proper balancing, bearing selection, rigid but suitable structural support, vibration isolation, and accurate installation can reduce vibration transmission. The surrounding enclosure should also be evaluated because structural resonance can amplify mechanical vibration.

Can a ventilation fan be completely hidden?

Yes. Fans can be installed inside ceiling cavities, service compartments, equipment cabinets, bathroom ceiling systems, or remote mechanical spaces. However, sufficient airflow clearance and maintenance access must still be provided.

How does ductwork affect exhaust fan noise?

Duct size, air velocity, elbows, transitions, filters, dampers, and grilles affect system resistance and turbulence. Poor duct design can force the fan to operate at higher speed and can generate additional aerodynamic noise.

Why is variable speed ventilation useful in luxury buildings?

Variable speed ventilation allows the system to respond to actual demand. It can provide lower background ventilation during normal conditions and increase airflow when humidity, occupancy, or air quality conditions require additional ventilation.

What should architects consider when integrating a quiet fan?

Architects should consider fan dimensions, installation location, access for maintenance, airflow openings, grille appearance, vibration transmission, duct routing, acoustic requirements, and coordination with ceilings and interior finishes.

Why should fan manufacturers participate early in a project?

Early cooperation allows the fan to be selected according to actual airflow, pressure, space, voltage, control, acoustic, and maintenance requirements. This can reduce the risk of redesign and improve integration between the HVAC system and architectural design.

What role can China Chungfo Fan play in luxury HVAC projects?

China Chungfo Fan can provide fan solutions based on application requirements, including airflow, pressure, voltage, dimensions, speed, noise, control, and installation conditions. For specialized projects, customized fan development can help bridge the gap between standard products and specific architectural HVAC requirements.
