Airflow and static pressure are the two most essential parameters of a fan, fundamentally shaping the efficiency, stability, and long-term reliability of any cooling system. Whether used in consumer electronics, industrial equipment, or home appliances, the interaction between fan performance and duct resistance determines the final operating point of the cooling system. Understanding system impedance, the fan’s P-Q curve, and their relationship is vital for reliable thermal design.

Accurate evaluation of system impedance is the foundation of cooling design

The resistance within the airflow path ultimately determines whether a fan can deliver its rated airflow under real conditions. Engineers typically rely on calculations or CFD simulations to obtain impedance curves, forming the basis for fan selection.

Constructing an accurate impedance model is essential. If the model does not reflect the actual airflow condition, insufficient airflow, abnormal noise, or thermal failures may occur even when a fan with seemingly correct specifications is used.

Major contributors to system resistance come from multiple components working together. Heat-sink fins with high density or increased thickness create significant impedance. Dust filters, depending on their material and mesh structure, noticeably reduce airflow. Vent grids with low open-area ratios further increase pressure loss. Sharp duct turns, especially 90° bends, generate turbulence that intensifies resistance. Internal component placement must also be considered; densely arranged heat sources obstruct airflow and create blockages.

In CFD simulation, proper simplification reduces computation time without sacrificing accuracy. For example, dense heatsink fins can be modeled as porous media. High-quality mesh is required in critical areas—including spaces near the fan, heater passages, and sharp bends—to accurately capture pressure variations. Proper boundary conditions, including airflow, static pressure, and total heat load, are equally essential, as they determine the required airflow for the cooling system.

Deep interpretation of the fan P-Q curve and optimization of the operating point

The intersection between the fan’s P-Q curve and the system’s impedance curve is the actual operating point. However, determining whether this point is optimal is the real engineering challenge.

The operating point must provide sufficient effective airflow. Many engineers select a fan with a maximum airflow twice the theoretical requirement to ensure margin for dust buildup, system aging, or structural changes. Ideally, the operating point should stay within the region of highest fan efficiency, where airflow, static pressure, and power consumption reach a favorable balance. This ensures energy savings, low noise, and long-term stability.

It is crucial to avoid the “stall region,” typically a concave section on the P-Q curve. When system resistance becomes excessive, the operating point shifts into this unstable area where irregular backflow and turbulence occur. This leads to significant noise, rapid airflow drop, and reduced fan lifespan. Therefore, engineers must closely check whether the selected fan will operate near the stall region. If risk exists, adjustments such as improving duct openings, reducing resistance, or selecting a higher static pressure model should be implemented.

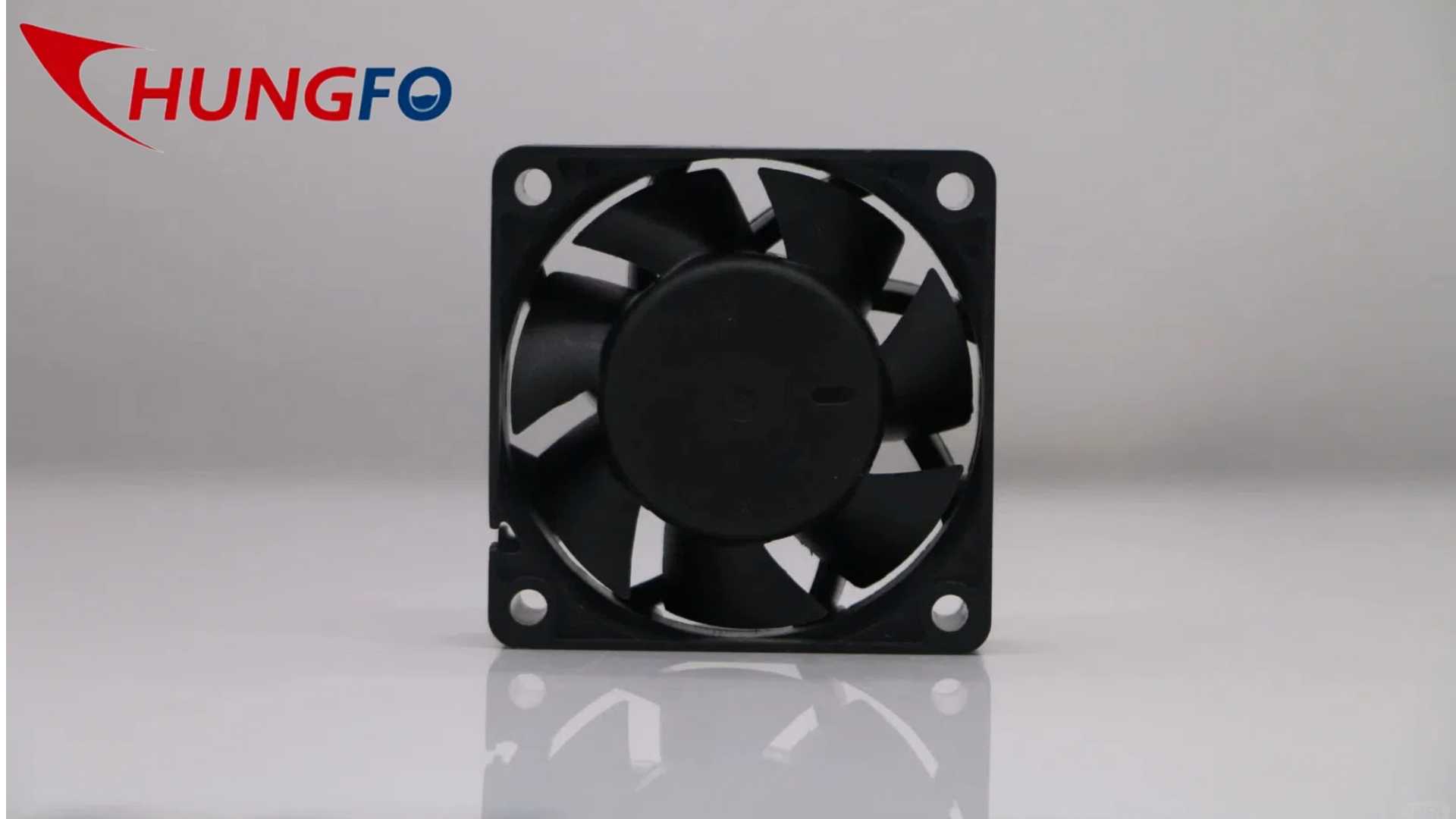

For applications requiring strong airflow, high static pressure, and reliable cooling performance, choosing a trusted manufacturer is essential. Chungfo specializes in advanced fan and cooling solutions, supported by professional simulation platforms and rigorous quality control. We provide customized products for different duct environments, including high-static-pressure silent cooling fans, high-airflow blowers, and complete cooling fan for home appliances, communication equipment, and industrial systems. Our solutions help customers improve cooling efficiency and extend equipment service life with confidence.
