Cooling fans are fundamental thermal management components used in appliances, computing systems, and power electronics. As a category of industrial cooling DC fans, their reliability directly impacts system efficiency, failure rate, and service life.

In applications such as photovoltaic inverters, energy storage systems, and machine tools, cooling fans are frequently exposed to harsh environments including moisture, airborne dust, salt spray, and oil mist. Under these conditions, conventional designs often fail due to PCB corrosion, insulation degradation, or bearing contamination. This creates a strong demand for environment-resistant cooling fans with enhanced protection mechanisms.

1. Environmental Resistance Design and Encapsulation Technology

The primary failure modes of standard cooling fans include:

Lubricant degradation in ball bearings

Corrosion of exposed PCB circuits

Insulation breakdown caused by conductive contaminants

To address these issues, Chungfo implements multi-level protection designs and offers graded environment-resistant cooling fans based on application requirements.

A key solution is the encapsulated cooling fan, where epoxy resin is applied to fully seal the stator windings and control circuitry. This structure provides:

Physical isolation from moisture and particulates

Resistance to salt spray and sulfur-containing gases

Improved chemical resistance against industrial oils

Compared to conformal coating, encapsulation forms a continuous barrier, significantly improving long-term reliability in aggressive environments.

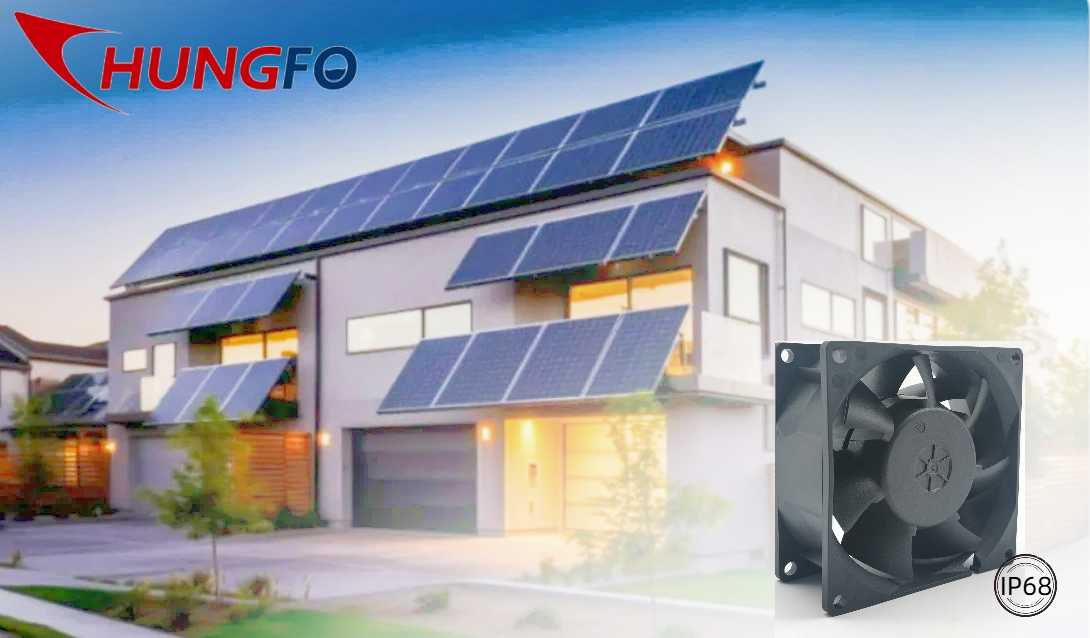

Case Study 1: Residential PV Inverters

Problem

Outdoor PV inverters operate under continuous exposure to rain, dust, and salt-laden air (especially in coastal regions). These factors accelerate PCB corrosion, leading to electrical failure and increased maintenance frequency.

Solution

A Level-3 environment-resistant cooling fan was implemented using an encapsulated cooling fan structure. The stator and PCB are enclosed and filled with epoxy resin, achieving IP68 protection.

Result

Reduced corrosion-related failures

Lower maintenance intervals

Improved system uptime

The product passed TÜV certification, confirming compliance with international safety and reliability standards.

Case Study 2: Machine Tools (Heat Exchanger Systems)

Problem

In machining environments, oil mist generated from cutting fluids penetrates the fan assembly. This leads to winding insulation failure and increased replacement frequency.

Solution

Chungfo deployed an industrial cooling fan with full encapsulation and IP69 protection. The design provides resistance to:

Oil mist contamination

Water ingress and high-pressure cleaning

Corrosive gases and salt exposure

Result

Internal validation testing indicates that the fan replacement cycle increased from approximately 1.5 years to 4.5 years under typical operating conditions.

This reduces:

Maintenance labor

Spare part consumption

System downtime

2. Design Implications and Application Value

Encapsulation-based designs are particularly suitable for:

Outdoor electronics (PV, telecom, energy storage)

Industrial environments with oil or chemical exposure

High-humidity or coastal installations

By improving environmental sealing at the component level, encapsulated cooling fans reduce dependency on system-level protection, simplifying overall thermal design.

Conclusion

Chungfo’s environment-resistant cooling fans, based on encapsulation technology, provide a robust solution for thermal management in harsh environments.

Through application-specific customization, these industrial cooling fans enable improved reliability, extended service life, and reduced total cost of ownership across a wide range of industries.
